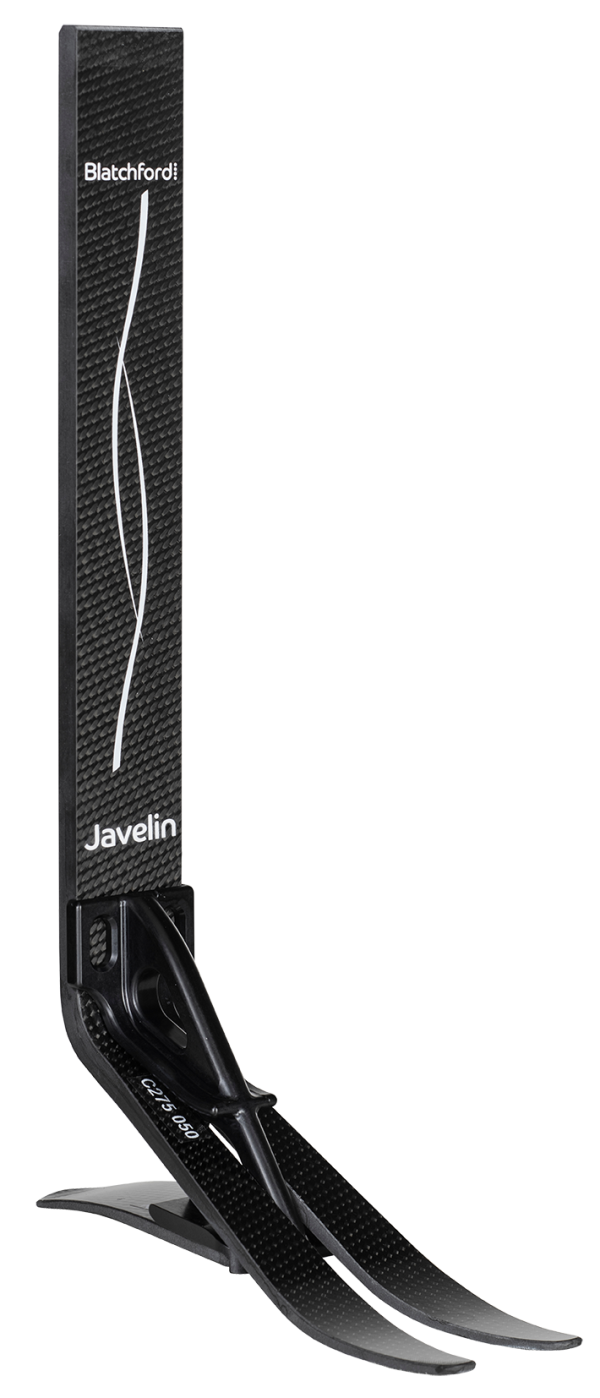

Javelin
The Javelin prosthetic foot offers the Level 3 user good energy response over a range of low- to moderate-impact sports and activities. Its blade style design is lightweight and ideal for variable cadence walking and allows a good cosmetic finish.
Features
- Small sizes available
- e-carbon foot with independent springs
- Dynamic pylon enhances shock absorption
- Easy to finish cosmetically
- Foot shell and glide sock included
| Max. user weight: | 166kg |
| Activity level: | 3 |
| Size range: | 22cm-30cm |
| Component weight: | 444g |
| Build height: | 200mm – 365mm (min – max) |
| Heel height: | 10mm |
(Component weight shown is for a size 26cm without a footshell.)
| Example | |||
| JAV |
25L
Size Side
|
3
Spring set
|
(D)
Optional dark tone
|
An annual visual inspection is recommended. Check for visual defects that may affect proper function. Maintenance must be carried out by competent personnel.
Blatchford trademarks.
Last updated: 15th July 2015
