AvalonK2

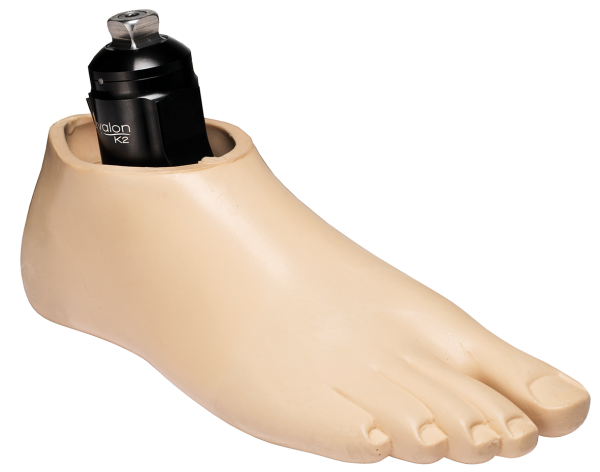

The AvalonK2 Foot is the latest hydraulic foot/ankle system from Endolite. It enhances walking confidence because it hydraulically adjusts to inclines and steps. The AvalonK2 self-aligns to secure the knee joint and encourage good posture and joint position, which enhances trans-femoral knee stability to help prevent falls, and it reduces unwanted moments on the knee joint of trans-tibial users. The toes dorsiflex after mid-stance and remain elevated during the swing phase, providing increased ground clearance for safety and efficiency.
Features
- Range of true motion, not just foot deflection!
- The hydraulic ankle provides plantar and dorsiflexion.
- Ergonomic keel for ease of rollover.
- Single valve adjuster
- Sandal toe allows different footwear styles.
Technical Data
MAX. USER WEIGHT
150 kg
SIZE RANGE
22-30cm
WEIGHT
115mm
HEEL HEIGHT
10mm
Specification
| Max. user weight: | 150kg |
| Activity level: | 2 |
| Size range: | 22-30cm |
| Component weight: | 780g |
| Build height: | 115mm |
| Heel height: | 10mm |
| Range of ankle motion: | 6° plantar to 6° dorsiflexion |
(Component weight shown is for a size 26cm with a footshell.)
Ordering
| Example | |||
| AV |
25L
Size Side
|
L
Spring set
|
(D)
Optional dark tone
|
Documentation
Patent reg: 5336386
An annual visual inspection is recommended. Check for visual defects that may affect proper function. Maintenance must be carried out by competent personnel.
