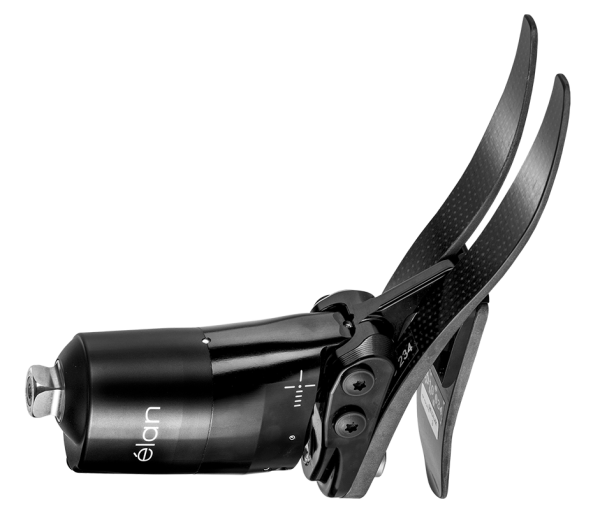

New Elan
Tried, Tested, Trusted.
Elan mimics natural muscle resistance and ankle motion by adapting hydraulic resistance levels to optimise stability when standing, on slopes, and uneven terrain. This encourages more symmetrical limb loading, faster walking speed, and reduced compensatory movements. The ankle pivot point is optimally positioned close to the natural weight line for a more natural response through the gait cycle.
The result is smoother, safer, and more natural walking, helping to preserve the body for the long term.
Features
- Situational Awareness – a network of sensors detects the user’s activity and environment
- Biomimetic Hydraulic Technology – for more natural and fluid ankle motion
- Active Resistance Control – microprocessor motor-controlled adaptive resistance provides Standing Support, Ramp Brake, and Ramp Assist Modes
- Split toe – for ground compliance on uneven terrain
- E-carbon springs – for efficient energy return
- Lightweight, compact design – for improved aesthetics
- Simplified Software – fast and easy programming
- Battery life indicator – LED indicates remaining power
- Even longer battery life – with power-saving mode and up to two days of usage between charges
- Low Power Mode – reverts to low resistance levels in low-power situations

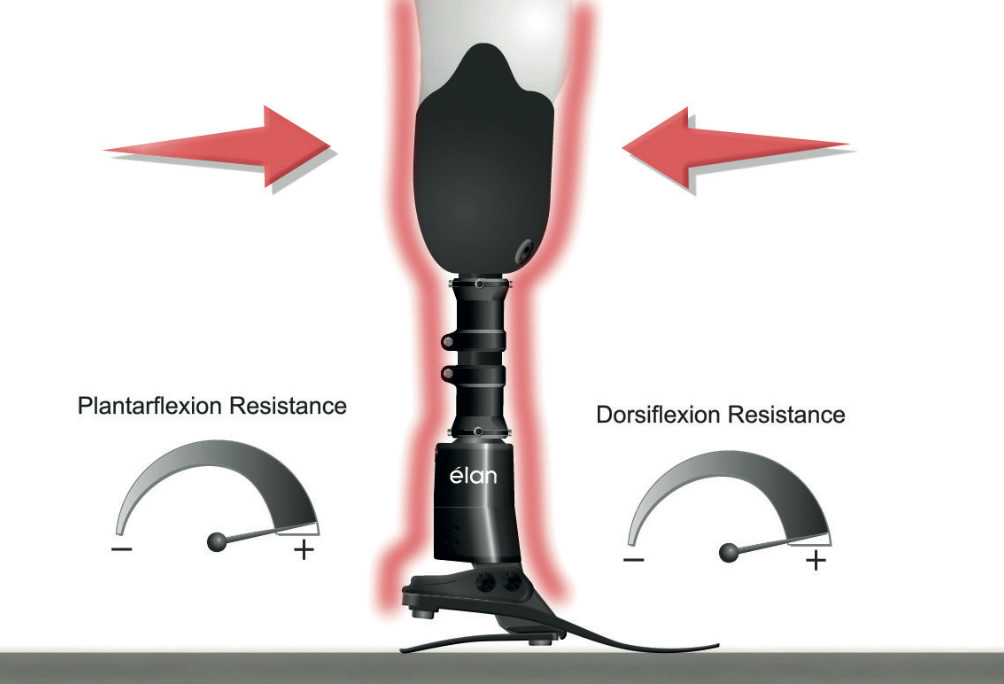

When no movement is sensed, the hydraulics stiffen to assist with a natural standing posture, providing equal socket pressures.

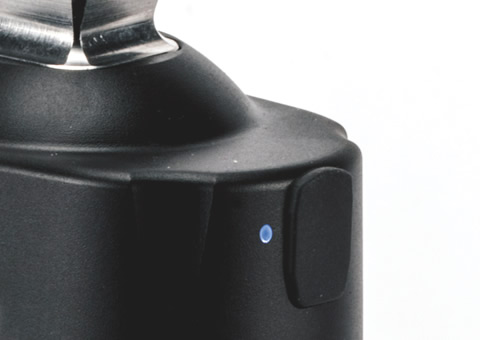

The refreshed design incorporates an integrated charging connector with a new LED battery power indicator.
The new software interface has been simplified and refined so that it is now easier than ever for clinicians to set up Elan.
The battery life is now even longer with up to two days usage between charges and a low power mode.

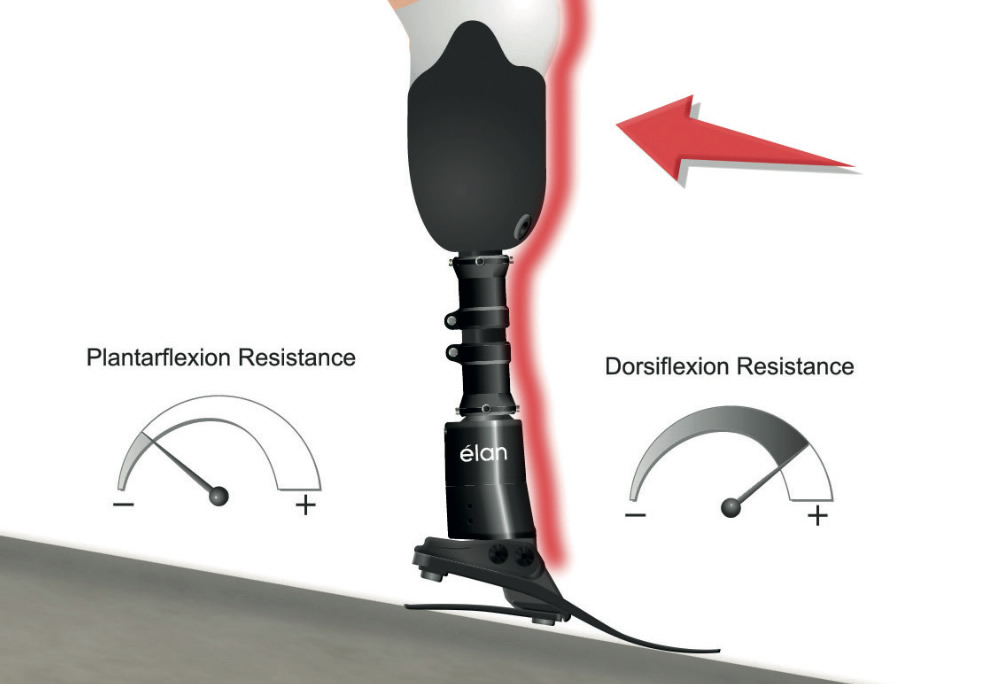

On walking downhill, lower plantar flexion resistance allows the foot to fully contact the slope sooner for improved safety and security. At the same time, increased dorsiflexion resistance provides a braking effect stabilising the user for a safer, more controlled descent.

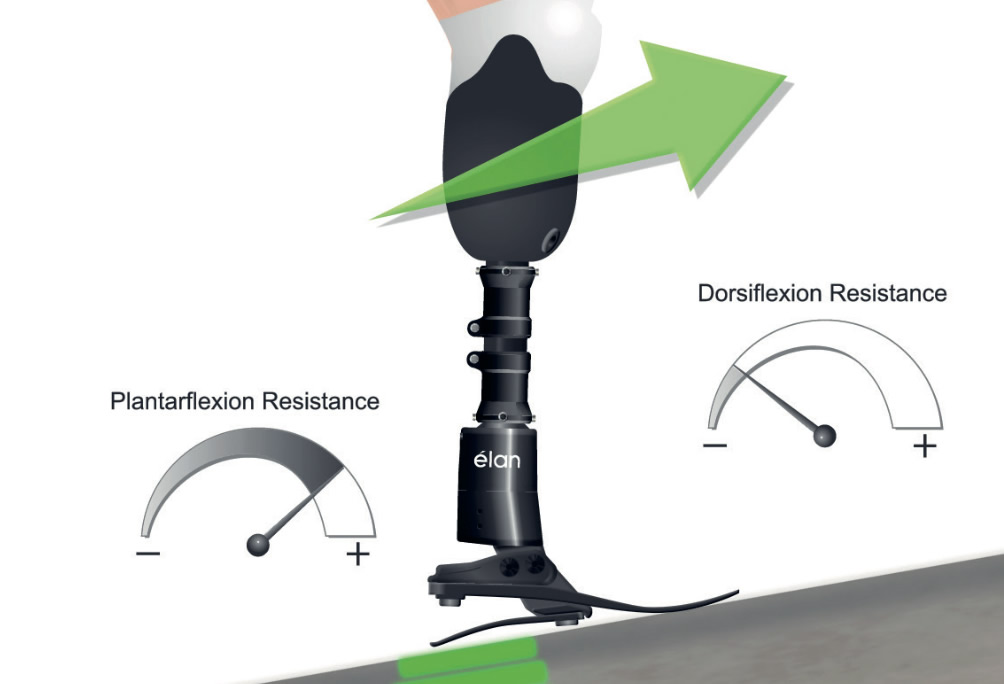

When walking quickly or up slopes, the plantar flexion resistance increases allowing for more optimal energy storage and return. Combined with a softer dorsiflexion resistance, this aids forward momentum, body position and minimises the effort required to walk fast or uphill.
Standing for longer periods has also just got easier. A network of sensors detect the user is stationary, increasing resistance to help improve balance, stability, reduce effort and encourage a more natural posture.

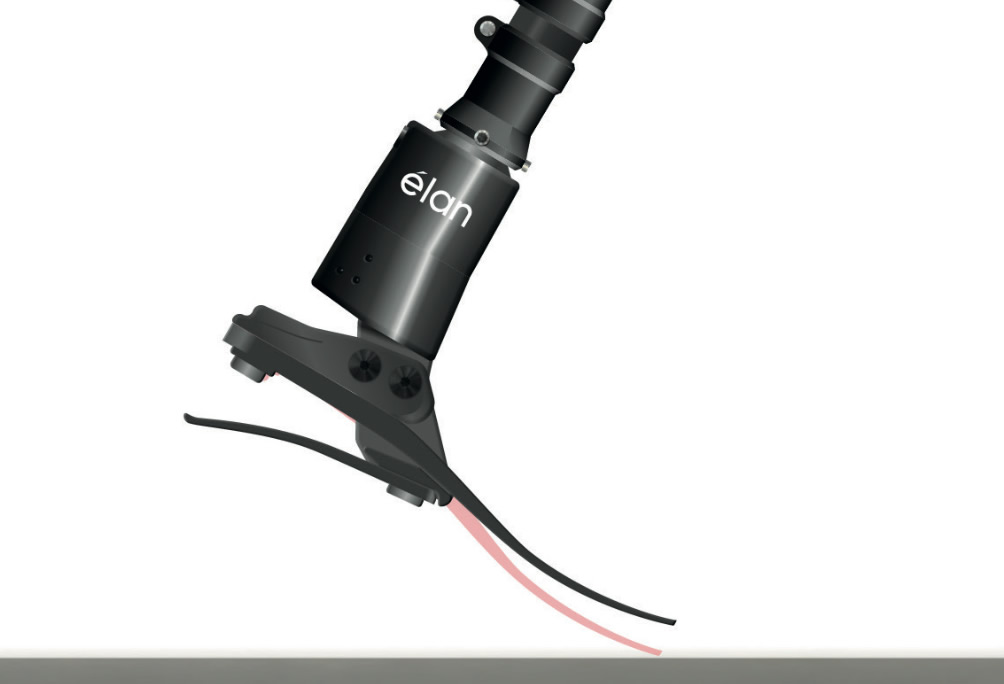

During swing phase, the ankle remains in a dorsiflexed position increasing toe clearance on every step and reducing the risk of stumbles or falls.
Endolite’s biomimetic hydraulic technology mimics the dynamic and adaptive qualities of muscle actuation to encourage a more natural gait. Multiple independent scientific studies, comparing Endolite hydraulic ankle-feet to non-hydraulic feet, have shown the following:
- Greater comfort, reduced socket pressures
- Improved safety, reduced risk of trips and falls
- Smoother, easier and more natural gait
- More evenly balanced inter-limb loading
- Greater satisfaction
Please click on the Clinical Compendium to download the document as a PDF.
Notes
You may need Adobe Reader installed on your computer to read the PDF documents above.
| Max. user weight: | 125kg |
| Activity level: | 3 |
| Size range: | 22cm-30cm |
| Component weight: | 1.2kg |
| Build height: |
170mm sizes 22-26
175mm sizes 27-30 |
| Heel height: | 10mm |
| Example | |||
| ELAN |
25L
Size Side
|
3
Spring set
|
(D)
Optional dark tone
|
Accessories
| Communications kit (required for programming should be ordered separately) | 406431E |
| Battery charger kit | 409087E |
| DC charger | 950224 |
| Clinician’s manual | 938317E |
| Bluetooth connector | 409093 |
Patent reg: 5336386, 1149568
An annual visual inspection is recommended. Check for visual defects that may affect proper function. Maintenance must be carried out by competent personnel.
