Orion3
Orion3 is suitable for K3 users who would benefit from stability on different terrains, slopes and steps and for those wishing to walk naturally and efficiently at either single or varying speeds.
The safety and stability of Orion3 encourages users to evenly distribute their weight, offloading their sound side and lower back to reduce aches and pains commonly reported by amputees.
- Mobility Level: 2, 3, 4*
- Build Height: 250 mm/10 in
- Max. User Weight: 125kg/275lb*
Features
- Situational Awareness – an Inertial Measurement Unit senses movement and speed to respond accordingly, in real time
- Enhanced Stability Performance – 5 levels of stance resistance optimises safety at all times
- Natural Efficient Motion – MPC pneumatics ensure energy efficient and smooth swing at multiple speeds
- Cycle Mode
- Fixed Angle Flexion Lock
- Knee Flexion to 130°
- Intuitive Programming Software
- Lithium Ion batteries with up to 3 days life, dependent on usage
- Battery Life Indicator
- Low Power Mode
- 3-year warranty subject to service at 20-month intervals
- Weatherproof
Orion3
Orion3 is suitable for K3 users who would benefit from stability on different terrains, slopes and steps and for those wishing to walk naturally and efficiently at either single or varying speeds.
The safety and stability of Orion3 encourages users to evenly distribute their weight, offloading their sound side and lower back to reduce aches and pains commonly reported by amputees.
- Mobility Level: 2, 3, 4*
- Build Height: 250 mm/10 in
- Max. User Weight: 125kg/275lb*
Features
- Situational Awareness – an Inertial Measurement Unit senses movement and speed to respond accordingly, in real time
- Enhanced Stability Performance – 5 levels of stance resistance optimises safety at all times
- Natural Efficient Motion – MPC pneumatics ensure energy efficient and smooth swing at multiple speeds
- Cycle Mode
- Fixed Angle Flexion Lock
- Knee Flexion to 130°
- Intuitive Programming Software
- Lithium Ion batteries with up to 3 days life, dependent on usage
- Battery Life Indicator
- Low Power Mode
- 3-year warranty subject to service at 20-month intervals
- Weatherproof
Enhanced Stability Performance (ESP) increases the user’s confidence and independence, reducing the risk of stumbles or falls and ensuring more balanced limb loading for greater long term health and protection.

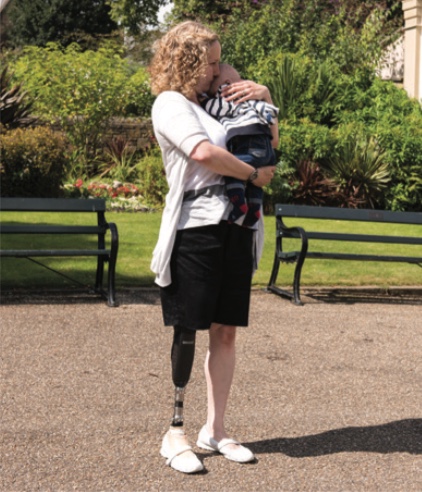

ESP adapts hydraulic resistance in real time, providing optimal stance support whether walking in a crowded environment, on uneven terrain, slopes, steps and now also when standing. With situational awareness, Orion3 continuously monitors the user’s activity and responds accordingly for greater safety.

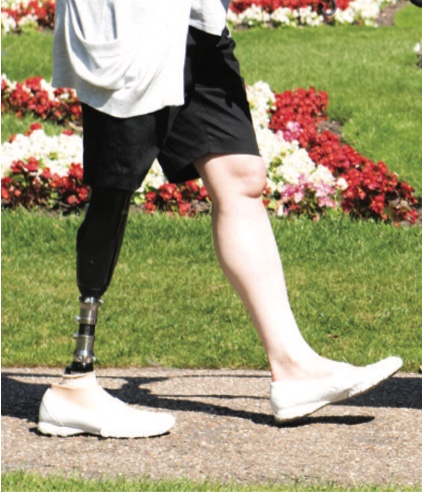

Supportive resistance throughout the stance phase provides optimal stability for walking with greater safety and less effort on all terrain.
Maximum resistance stabilises knee, on both at and slopes, encouraging better posture and balanced loading to relieve pressure on sound limb and lower back.

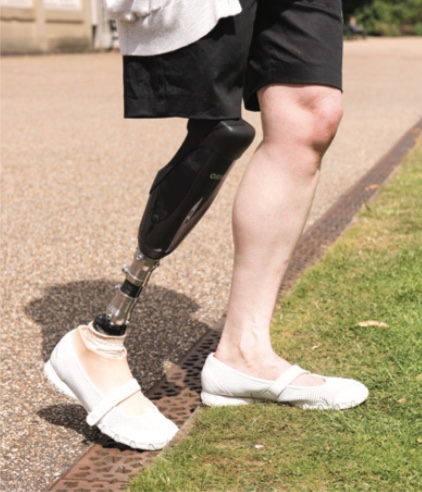

Stance resistance engages during swing phase extension to ensure knee stability should the user stumble.

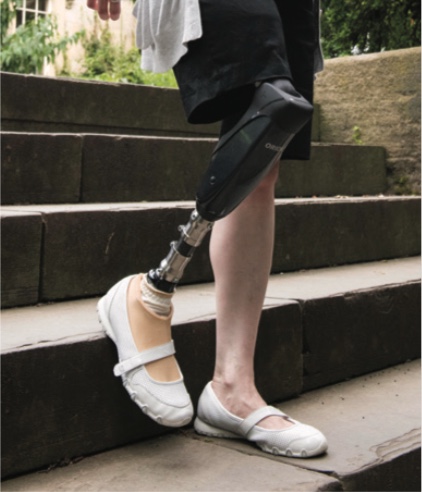

Knee resistance progressively increases with immediate support on the first step and increasing support with further knee flexion for enhanced control and safety when descending stairs or slopes.

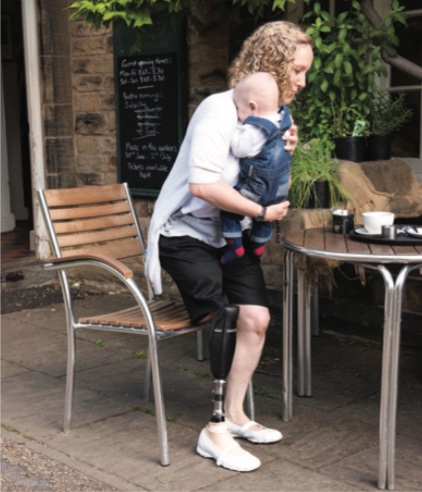

Progressive hydraulic resistance ensures greater support and control to sit down with safety and confidence and more balanced loading across both limbs.
Knee flexion during swing phase varies according to walking speed. With microprocessor pneumatic swing control, Orion3 controls heel rise across a range of walking speeds for a more natural swing. The pneumatic spring also makes it easier to initiate swing, saving energy with every step and ensuring more natural knee flexion at lower speeds.

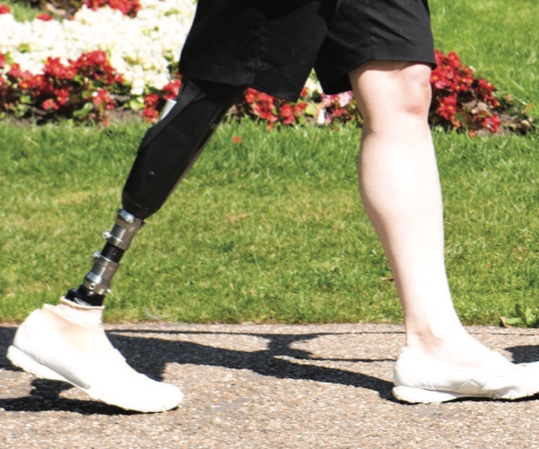

Orion3 releases high resistance just before the knee bends for optimal safety, easy knee flexion and reduced walking effort.

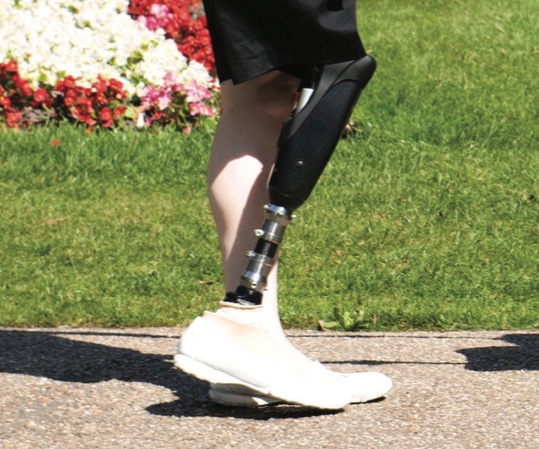

By sensing changes in walking speeds, Orion3 dynamically adapts pneumatic control in real time for a smooth, natural, and energy-efficient swing. *

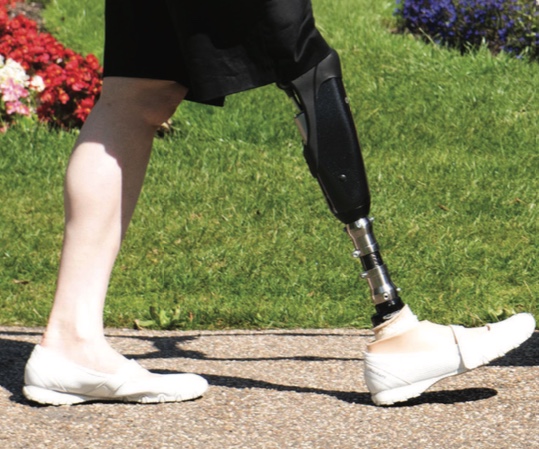

Swing phase extension is damped in late swing to soften knee movement and prevent terminal swing impact.
Programming Orion3 just got faster and simpler with the new Orion3 programming app for clinicians, available on iOS and Android. With its simple-to-follow automated smart programming, you can complete limb setup with fewer steps while still having access to more advanced fine-tuning if required.
This app is for clinicians who have completed a Blatchford-approved training course and require an authorisation code:
- Download the app from the App Store and search for “Orion3”.
If using an iPad, please choose “iPhone Only” when searching. - On first use, send the 8-digit “Authorisation Request Code” to your Blatchford representative.
- Enter the 12-digit code provided by your Blatchford representative into the app.
- Start programming Orion3!
For support questions, please contact Blatchford Technical Support at technical.support@blatchford.co.uk
* Compatible with all models of iPad, iPhone, and iPod Touch running iOS v9 or later.
| Max. user weight: | 125kg (275lbs) |
| Activity level: | 3 |
| Component weight: | 1.5kg (3.3lbs) |
| Build height: | 244mm |
| Control unit: | MPK Hydraulic/Pneumatic |
Part Number: ORION3
Accessories
Battery Charger Kit – 950223
Clinician’s Manual – 938974
User Guide – 938375
Proximal Attachments (ordered separately)
Rotating Pyramid with Shift – 239017
Non-rotating Pyramid with Shift – 239089
Female Pyramid with Shift – 189128
M36 Threaded Adapter with shift – 239092
Patent reg. US5893891 US6517585 US6719806 13/777,327 APP EP1059898 EP1998723
An annual visual inspection is recommended. Check for visual defects that may affect proper function. Maintenance must be carried out by competent personnel.
Blatchford trademarks.
Last updated: 12th July 2021
