    smartip

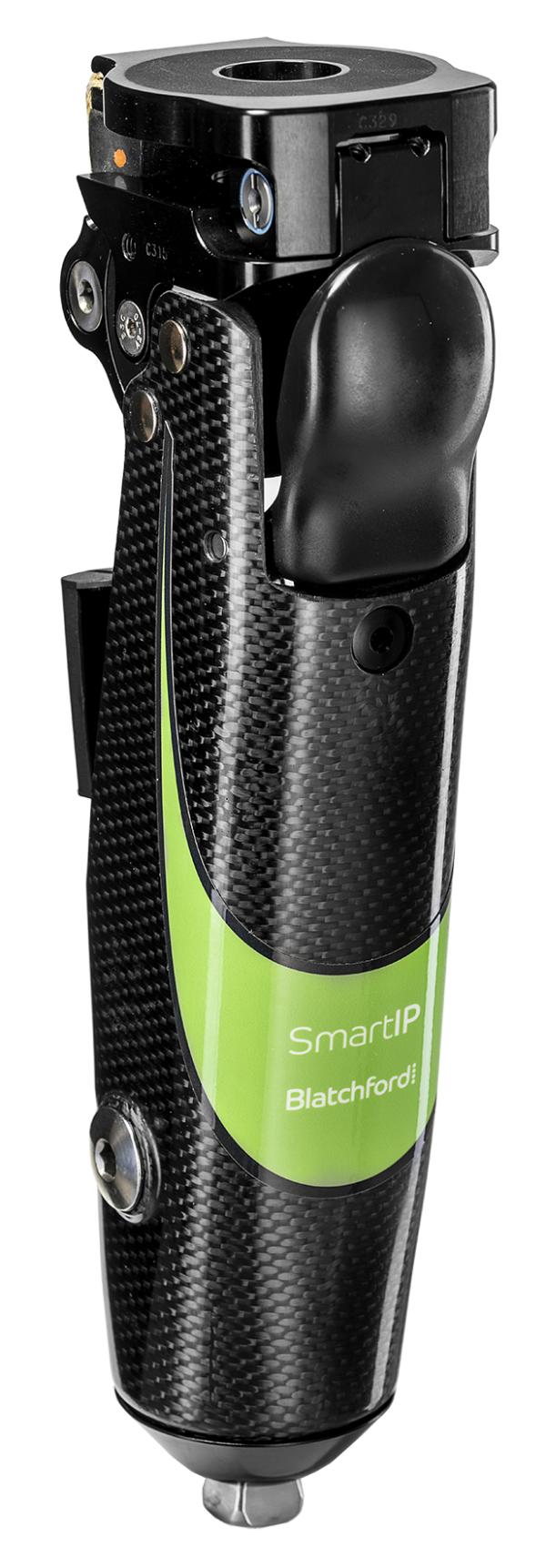

    The SmartIP microprocessor-controlled knee employs intelligent programming technology that dynamically programs the knee to optimum swing settings for the individual level 3 activity user, reducing the amount of energy expended by trans-femoral prosthesis users. The weight-activated stance control provides an adjustable smooth and yielding transition at toe-off.



    Features

    • Comfortable gait from very slow to very fast walking speeds
    • Smoother speed progression because of enhanced programmes
    • Weight-activated stance control
    • Stanceflex option improves comfort
    • Battery life expectancy 9-12 months under normal usage
    • 140° knee flexion

    Specification

    Max. user weight: 125kg
    Activity level: 2-3
    Component weight: 1.27kg Stanceflex
    1.15kg 4-Bolt
    Control unit: Swing: MPK/Pneumatic
    Stance: mechanical

    Ordering

    Part Number:

    Stanceflex options:

    SMARTIPSF30
    SMARTIPSFPYR

    4-Bolt options:

    SMARTIP4B30
    SMARTIP4BPYR

    Specification

    An annual visual inspection is recommended. Check for visual defects that may affect proper function. Maintenance must be carried out by competent personnel.

    Blatchford trademarks.

    Last updated: 15th July 2015
